Scalability
Binder Jetting can produce multiple parts simultaneously, making it suitable for large-scale production.
CUSTOM ONLINE 3D PRINTING SERVICE
Binder Jetting (BJ)3D Printing Service
Cost-effective, complex Binder Jetting parts shipped in 4-5 days with a wide range of metal materials.
Upload 3D File. Get Free DFM Review
STEP, STL, IGES, OBJ and more. We'll route your part to the right process before production starts.
Get Instant Quote
Instant Pricing • No MOQ • Secure Upload • 10% Off First Order
Excellent4.7 out of 5

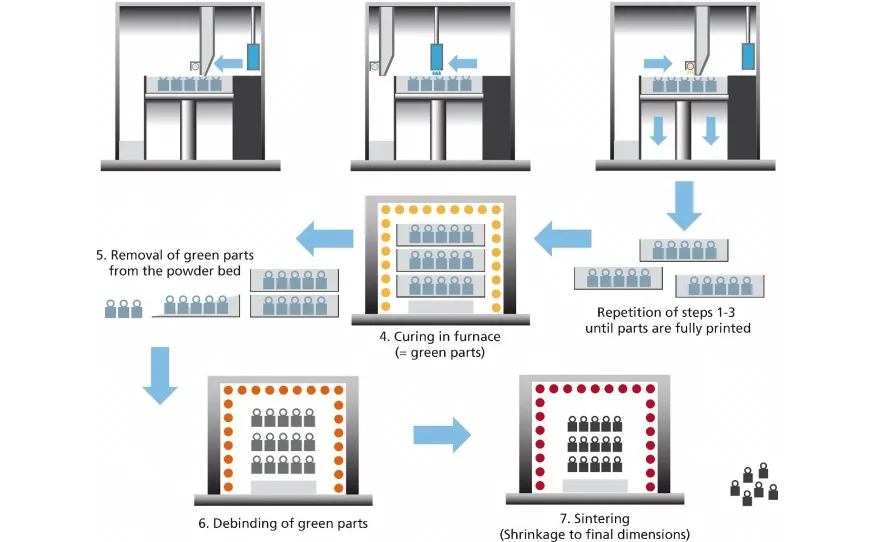

Overview: How Binder Jetting 3D Printing Works?
The Basics of Binder Jetting 3D Printing:
Binder Jetting is an additive manufacturing process that creates 3D objects by depositing a liquid binding agent onto a bed of powder material, layer by layer. It's known for its speed, ability to print in full color (in some cases), and use of various materials like metals, sand, or ceramics.
Why Choose Binder Jetting 3D Printing With Unionfab
- Unionfab has leading large-format printing systems to directly produce large metal parts, meeting the high-precision needs of industries like automotive and machinery for big structural components.
- Conduct 100% full appearance inspection for all products and 2.5% critical dimension inspection for AQL. Provide standard inspection reports, support customers’ online quality inspection before shipment, and control the production and inspection of products throughout the process.
- Unionfab has a professional team of engineers and production capacity to provide more diversified, efficient and cost-effective Binder Jetting 3D printing solutions for different application scenarios of industrial customers.
Features of Binder Jetting 3D Printing
Material Flexibility
The process can be used with metals, ceramics, and even sand, providing a wide range of application possibilities.
No Support Structures
Since parts are printed in a powder bed, there is no need for additional support structures, allowing for more design freedom.
Cost-Effective
Binder Jetting is often more economical for producing large batches compared to other metal 3D printing methods.
Lower Strength
Parts produced via Binder Jetting may require additional sintering or infiltration to achieve full strength, which can add complexity.
Surface Finish
The surface finish may require additional post-processing to achieve smoothness and precision.
Binder Jetting Design Guidelines
| US | Metric | |
|---|---|---|
| Standard Size | 16.93 in. × 11.81 in. × 5.51 in. | 430 mm × 300 mm × 140 mm |
Note: These design guidelines are for general reference only. Actual manufacturability may vary depending on specific part geometry and material.
Binder Jetting Available Materials

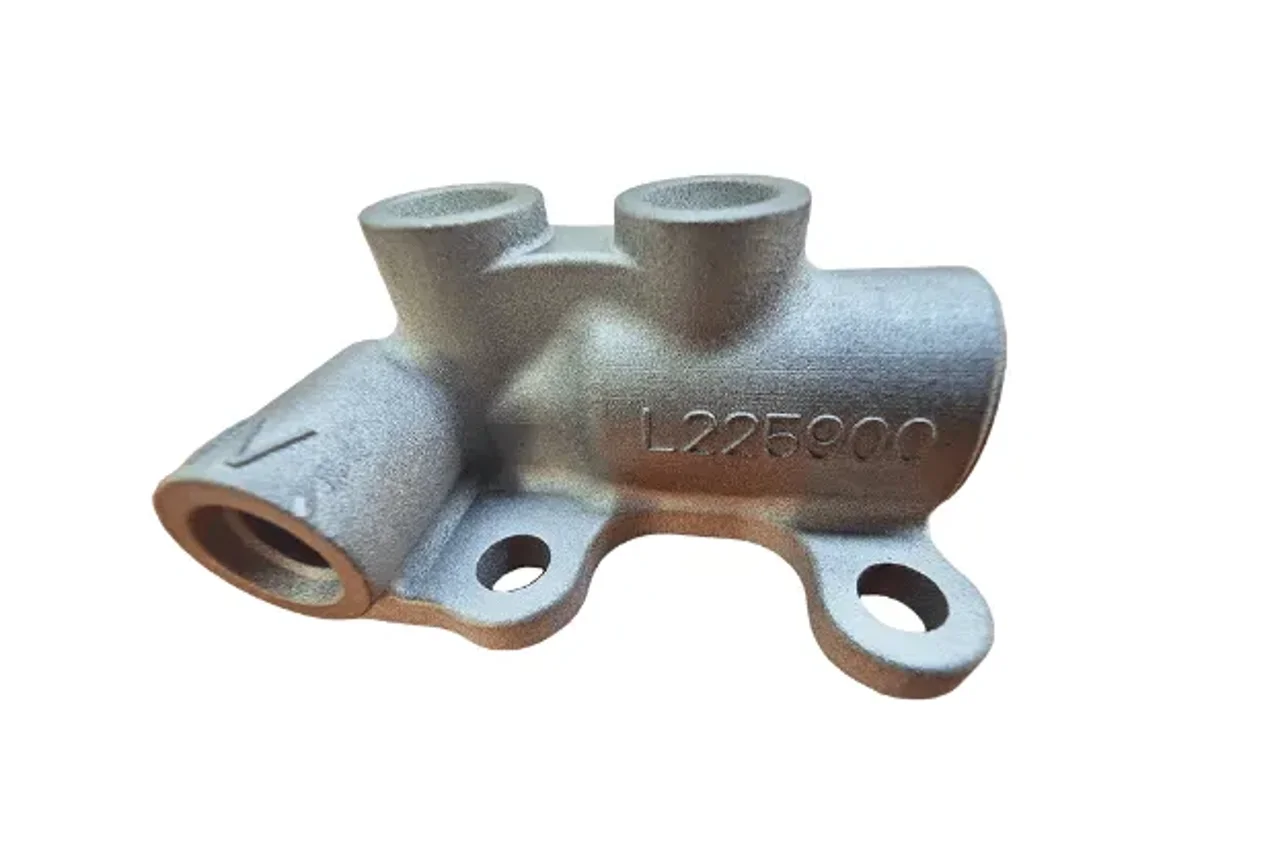

SS17-4PH
The strength and hardness of 17-4PH precipitation hardened stainless steel can be significantly improved through heat treatment after sintering. The color of its printed parts is dark gray to black gray in the sintered state. It has good mechanical properties and moderate corrosion resistance, and is suitable for structural parts that require both strength and precision.
- Process:
- Binder Jetting
- Maximum Size:
- 430 × 300 × 140 mm
- Colors:
- Gray-Black
Learn MoreDownload DataSheet

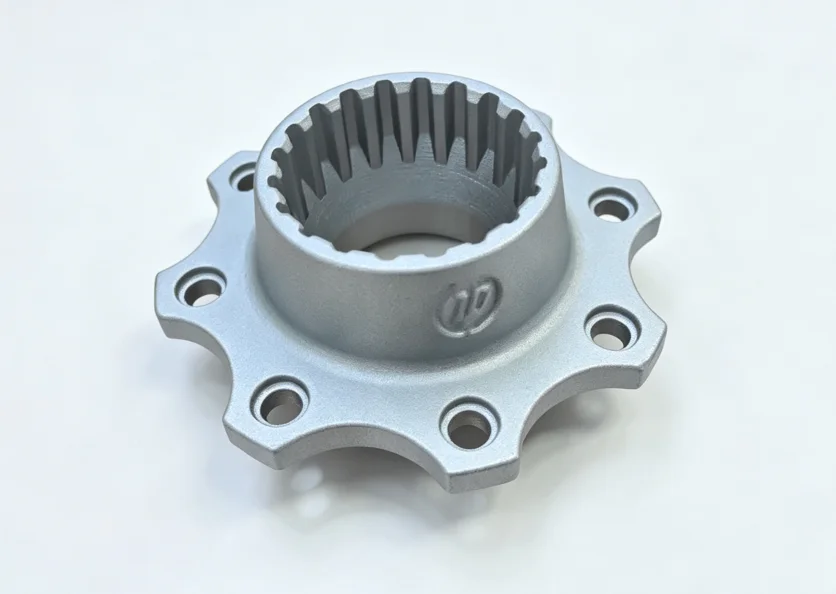

Available Finishes
Default:
- The natural surface of binder jetting printed parts after debinding and sintering, sometimes supplemented with light sandblasting, ensures the parts achieve basic strength and a uniform texture.
Other:
- Post-processing may include curing, sintering, infiltration, or surface finishing to achieve the desired properties and appearance.
Binder Jetting 3D Printing Applications
Prototypes
Binder Jetting can print prototype parts with complex structures without the need for support structures. It has a wide printing range and is suitable for prototyping equipment shells or mechanical structural components. Compared with SLM etc., Binder Jetting has better detail performance.
Customized Products
The Binder Jetting process is highly suitable for the production of customized products. It is currently one of the most suitable manufacturing solutions for customized products with medium and high precision, complex structures, and diverse materials, especially for the demand of "small quantity and diverse variety".
Batched Products
Binder Jetting is well-suited for high-volume production, particularly for parts that do not require extensive post-processing. It can batch print complex-structured steel gears, couplings, brackets, etc. It does not require support and has good mechanical properties after post-treatment sintering.
The Production Capacity of Unionfab
Production Machines
| Process | Name | Numbers | Process Size(mm) |
|---|---|---|---|
| Binder Jetting | HPS100D | 1 | 430*300*140 |
| M-Flexx1 | 1 | 400*250*250 | |
| Shop System | 2 | 400*250*250 |
Post-Process Machines
| Process | Name | Numbers | Process Size(mm) |
|---|---|---|---|
| Painting | Painting Line | 2 | 1000*2000*1000 |
| Sand Blasting | Sand Blasting Machine | 2 | 400*800*500 |
| Polish | Chemical Polishing Line | 2 | 600*1200*400 |
| Magnetic Polishing Machine | 2 | 60*60*60 | |
| Anodized | Anodizing Equipment | 2 | 800*2000*500 |
Binder Jetting 3D Printing
for Various Industries
Ready to Start Your 3D Printing Project?
Get Instant Quote
Unionfab is China's Largest 3D Printing Manufacturing Company for Rapid Prototyping and On-Demand Production Parts.
